Industrial hot cold low pressure test equipment for Solar Module Test
KOMEG High Altitude Simulation Test Chambers test for the instruments and meters, electrical products, materials, spare parts, equipments, etc at a low pressure, high temperature, low temperature, under the effect of single factor or multiple factors at the same time. Simulation of high-altitude conditions like might be found in mountainous regions. Test for electric performance parameters of the specimen. Mainly used in aviation, aerospace, information, electronics and other industries.
1.Streamline arc design pioneered by the shell is cold-rolled steel plate electrostatic spray;
2. Liner are made of stainless steel, semi-circular square design is more convenient to clean;
3.Tightness of the chassis door completely arbitrary regulation by the user, the overall shape of the silicone rubber door seals, to ensure high vacuum chamber;
4. Rectangular structure of the local studio, so that the maximum effective volume, with steel doors, bullet-proof double glass door, so that training materials allow users to observe the studio at a glance.
Optional parts:
Communication interface RS232 or RS485, logger, micro printer, remote temperature and humidity control system (including printers, communications software, computer), mobile casters.
Structure:
Overall structure, new test chamber designed very easy to operation and maintenance:
Water and electricity system separation design;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
Material:
machines for sheet metal processing;
Tecumseh, Bock Compressor;
High quality electronic components (e.g. DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)
Standards Implemented and Met
GB10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
| Specifications | KOMEG |
| Model | KU-504L | KU-1000L | KU-504S | KU-1000S |
| Inner Size (D*W*H)mm | 800*700*900 | 1000*1000*1000 | 800*700*900 | 1000*1000*1000 |
| Capacity(KW) | 11 | 15 | 16 | 18 |
| Chamber Volume(L) | 504 | 1000 | 504 | 1000 |
| Performance | Temp range | -40℃~+150℃ | -70℃~+150℃ |
| Temp constancy | ±0.5% |
| Temp deviation | ≥100℃, ±3.0℃(at constant pressure with empty load) |
| <100℃, ±2.0℃(at constant pressure with empty load) |
| Cooling rate | 0.7℃~1.0℃/min(Overall average) |
| Pressure range | Constant pressure ~1kPa |
| Pressure constancy | When ≥40kPa, ±2kPa, 4kPa~40pKa ±0.5kPa, when≤4kPa, ±0.1kPa |
| Depressurization rate | Constant pressure~1kPa≤30mins(Normal temp) |
| Pressure recovery rate | 10kPa/Min(adjustable) |
| Material | Exterior material | Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate |
| Interior material | Stainless steel(SUS304) |
| Pressurized parts | High quality steel plate(Rust proof & Plastic spray treated) |
| Insulation material | High quality glass wool |
| Cooling System | Compressor | Semi-Hermetic Compressor |
| Cooling Mode | Water cooled |
| Temp regulating method | Balanced Temperature & Humidity Control System (BTHC) |
| Pump | Rotary vane type vacuum pump |
| Heater | Iron-chrome wire heater |
| Sight window | Circular viewing glass incorporating heat generator |
| Temp Sensor | Pt-100 |
| Controller | Touch Screen Controller |
| Safety Devices | Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower, Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm |
| Standard Accessory | Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2 |
| Power | AC380V/50Hz, 3Phase 5 wires+ Ground Wire. |
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available
|
Altitude chamber working principle

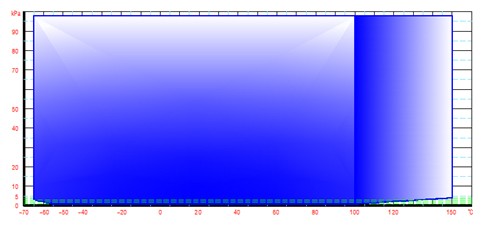

Temperature and pressure range chart
